Sometimes, it might feel a bit old-school to use the Linux command line directly for data analysis. (Yes, the commands in this article work only for UNIX based systems. Sorry Windows users…) However, some quick and dirty tasks are just perfectly suited for some command-line tools that are just installed on almost every Linux machine.

This post is not an extensive review over the capabilities of the bash programming language or the command line. It is rather a show-case of how some basic knowledge of the command line can make your life much easier.

The setting

Imagine you have some simulation data lying around that a colleague of yours produced a while ago. It might look something like this:

[-1, -2, 0, -1, 0, 0, 9, 0, 0, 0, 0, 0] 2
[-1, -1, -1, 0, -1, 0, 0, 2, 0, 0, 0, 0] 2
[-1, -2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] 2
[-19, -23, -9, -9, -11, 3, -2, -8, -8, 1, 5, 0] 3
[-19, -21, -9, -9, -12, 4, -2, -2, -8, 1, 6, 0] 3
[-19, -9, -23, -2, -11, 3, -9, 5, -8, 1, -4, 0] 3
[-19, -9, -21, -2, -12, 4, -9, 6, -7, 1, -3, 0] 3
[-16, -20, -6, -6, -8, -3, 1, -9, -5, 4, 2, 0] 3
[-16, -12, -6, -6, -10, 3, -2, -3, -8, 2, 8, 0] 1
[-16, -6, -20, 1, -8, -4, -6, 2, -5, 4, -7, 0] 3
[-16, -6, -12, -1, -10, 3, -6, 8, -8, 3, -3, 0] 3
[-14, -16, -6, -6, -7, 1, -1, -5, -7, 2, 4, 0] 3
[-14, -16, -6, -6, -9, -1, -1, -7, -5, 4, 2, 0] 2
[-14, -12, -6, -6, -2, 2, -1, -3, -7, 2, 6, 0] 1
[-14, -10, -6, 0, -8, -7, -1, -8, -5, 4, 1, 0] 1
[-14, -10, -4, -9, -8, 5, -1, -1, -6, 3, 8, 0] 3
[-14, -6, -16, -7, -7, 0, -6, 4, -7, 2, -5, 0] 3
< and some 30K more lines >

The numbers in parentheses are some coefficients and the number behind at the end of each line is a classification result.

Here, we are going to work with this short version of the file. You can download it here.

Using the command line

For an in-depth data analysis, Python is the obvious choice. Load the data with pandas and start analyzing away.

However, maybe you want to get a quick, first impression of the data. The command line could give you exactly that. Let’s see how that works.

For the rest of the blog post, I assume that you are using some UNIX command line. None of the commands will be specific to a special shell (like bash or zsh). If you are using Windows, well, … There is the subsystem of Linux.

Getting to know the file

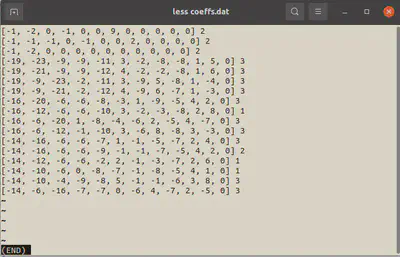

In a first step, we can get a general overview of the file with commands like less or cat. Both commands display the contents of the file in the command line. While cat actually concatenates the contents to the terminal, less opens a scrollable viewer. This is especially useful for longer files.

To leave the less viewer again press q. The commands in less are somewhat similar to the commands available vim. You can search with /, scroll with j and k. For a full overview of all commands, press h in less.

Fun fact: the command tac (cat backwards) prints a file backwards…

Sometimes, it is not really interesting to view the full file, but we are only interested the first or last couple of lines. The commands head coeffs.dat and tail coeffs.dat will plot the first and last couple of lines. The option -n sets the number of printed lines for both commands.

Finally, we might be interested in the length of the file, i.e. the number of lines, the number of words or the number of characters. The program word count got you covered. By calling wc coeffs.dat, we obtain

 16 221 818 coeffs.dat

The file has 16 lines, 221 words and 818 characters. For details on the output format, have a look at the manual under man wc.

In general, the man-pages are an excellent spot to look for details on a command.

Filtering and Sorting

The file coeffs.dat contains coefficients for many different classes. The class is indicated by the last column.

If we are only interested in a single class, it would great if we could just output the lines for a certain class. Luckily, grep got you covered.

The call grep '] 3' coeffs.dat filters only those lines from coeffs.dat that contain the pattern '] 3'. Since each lines contains only one closing bracket at the end, the filter will work only on the class indicator. As an output, we get

[-19, -23, -9, -9, -11, 3, -2, -8, -8, 1, 5, 0] 3
[-19, -21, -9, -9, -12, 4, -2, -2, -8, 1, 6, 0] 3
[-19, -9, -23, -2, -11, 3, -9, 5, -8, 1, -4, 0] 3
[-19, -9, -21, -2, -12, 4, -9, 6, -7, 1, -3, 0] 3
[-16, -20, -6, -6, -8, -3, 1, -9, -5, 4, 2, 0] 3
[-16, -6, -20, 1, -8, -4, -6, 2, -5, 4, -7, 0] 3
[-16, -6, -12, -1, -10, 3, -6, 8, -8, 3, -3, 0] 3
[-14, -16, -6, -6, -7, 1, -1, -5, -7, 2, 4, 0] 3
[-14, -10, -4, -9, -8, 5, -1, -1, -6, 3, 8, 0] 3
[-14, -6, -16, -7, -7, 0, -6, 4, -7, 2, -5, 0] 3

grep does not only inclusive support searching, but also exclusive searching. You can print all lines that do not contain the pattern. The command grep -v '] 3' coeffs.dat prints all lines that do not belong to class 3. In this case, it is all other lines:

[-1, -2, 0, -1, 0, 0, 9, 0, 0, 0, 0, 0] 2
[-1, -1, -1, 0, -1, 0, 0, 2, 0, 0, 0, 0] 2
[-1, -2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] 2
[-16, -12, -6, -6, -10, 3, -2, -3, -8, 2, 8, 0] 1
[-14, -16, -6, -6, -9, -1, -1, -7, -5, 4, 2, 0] 2
[-14, -12, -6, -6, -2, 2, -1, -3, -7, 2, 6, 0] 1
[-14, -10, -6, 0, -8, -7, -1, -8, -5, 4, 1, 0] 1

To get a better overview of the data, we can directly pipe this output to the next command. The pipe character | takes the output of the left side and feeds it into the input of the right side. If we want to sort the output of all class-3 outputs, we can call grep '] 3' coeffs.dat | sort

[-14, -10, -4, -9, -8, 5, -1, -1, -6, 3, 8, 0] 3
[-14, -16, -6, -6, -7, 1, -1, -5, -7, 2, 4, 0] 3
[-14, -6, -16, -7, -7, 0, -6, 4, -7, 2, -5, 0] 3
[-16, -20, -6, -6, -8, -3, 1, -9, -5, 4, 2, 0] 3
[-16, -6, -12, -1, -10, 3, -6, 8, -8, 3, -3, 0] 3
[-16, -6, -20, 1, -8, -4, -6, 2, -5, 4, -7, 0] 3
[-19, -21, -9, -9, -12, 4, -2, -2, -8, 1, 6, 0] 3
[-19, -23, -9, -9, -11, 3, -2, -8, -8, 1, 5, 0] 3
[-19, -9, -21, -2, -12, 4, -9, 6, -7, 1, -3, 0] 3
[-19, -9, -23, -2, -11, 3, -9, 5, -8, 1, -4, 0] 3

The sort command sorts lexicographically. Numbers like 1, 30, 100 will be sorted as 1, 100, 30 because 100 begins with the smaller number. This default behavior can be adapted with the option -n.

Finally, it would be handy to write the filtered data back to a file. The character > directs the standard output stdout that is usually displayed on the console to a file. The command grep '] 3' coeffs.dat | sort > coeffs_cls_3_sorted.dat writes the sorted output for class 3 to a file called coeffs_cls_3_sorted.dat.

Commands in this blog post

• man <cmd>: Print the manual page of the command <cmd>.
• cat <fname>: Concatenate the contents of the file to the command line
• tac <fname>: Contacenates the contents of a file to the command line in reversed order
• wc <fname>: Count the lines, words and characters in a file
• tail <fname>: Print the last lines of a file. Especially useful as tail -f <fname> to get a live update of a changing file.
• head <fname>: Print the first lines of a file.
• grep 'pattern' <fname>: Display all lines containing pattern in <fname>.
• grep -v 'pattern' <fname>: Display all lines not containing pattern in <fname>.
• sort <fname>: Sort the file’s contents in lexicographical order.

Reference

In case you are looking for a really well-written reference on the Linux command line, check out this book:

Brian W. Kernighan and Rob Pike. The UNIX programming environment. Prentice-Hall software series. Englewood Cliffs, N.J: Prentice-Hall, 1984. 357 pp. isbn: 978-0-13-937681-8.

It is one of the first books that I read about computers and it really changed the way that I think about the command line.
